Do You Need a Mini Split Head in Every Room?

Understanding the Basics of Ductless Technology

How many mini split heads do I need is one of the most common questions homeowners ask before installing a ductless system — and the answer isn't always "one per room." The right number depends on your home's layout, square footage, insulation, and how air moves between spaces.

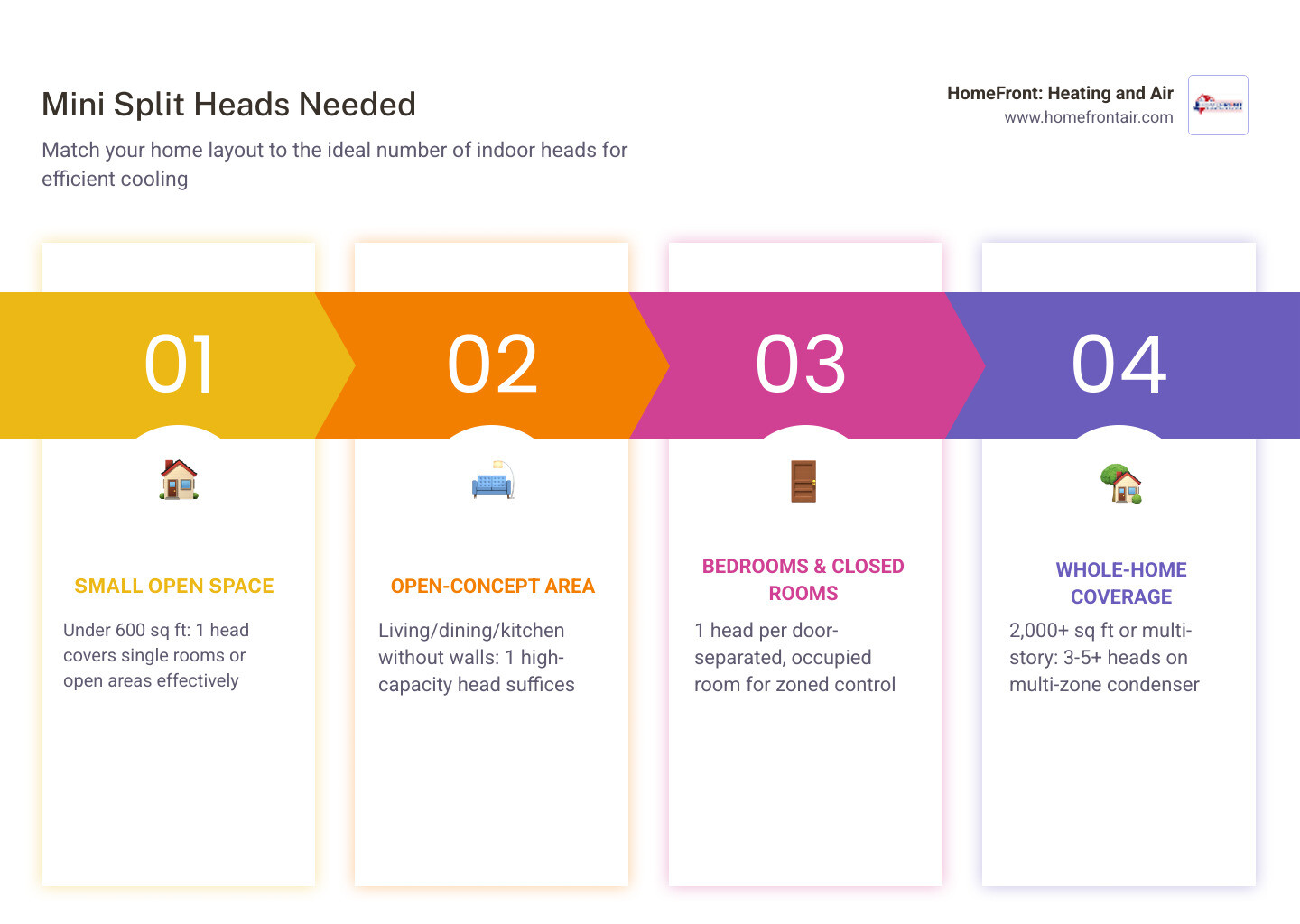

Quick Answer: How Many Mini Split Heads Do You Need?

The simple rule of thumb: You need a head in each room that is separated by a door and regularly occupied — but open, connected spaces can often share a single unit.

Getting this wrong in either direction creates real problems. Too few heads and you'll have rooms that never reach a comfortable temperature. Too many and you've overspent on equipment you didn't need. The layout of your home — specifically which rooms have closed doors and how air flows between spaces — matters just as much as total square footage.

I'm Chris Stokes, owner of HomeFront Heating & Air and a 16-year HVAC veteran who has helped hundreds of Central Texas homeowners figure out exactly how many mini split heads do I need for their specific home. Whether you're cooling a single room or planning a whole-home ductless system, getting the head count right from the start is the key to lasting comfort and efficiency — and that's exactly what this guide will walk you through.

To figure out how many units you need, it helps to understand what’s actually going under the hood. A ductless Mini Split system is essentially a heat pump split into two main parts.

First, you have the indoor heads (also called air handlers). these are the sleek units mounted on your wall or ceiling that actually blow the conditioned air into your room. Second, you have the outdoor compressor (or condenser). This unit sits outside your home and does the heavy lifting of moving heat in or out of the house.

These two parts are connected by thin refrigerant lines and electrical wiring that pass through a small, three-inch hole in your exterior wall. Because there are no ducts, you don't lose the 30% of energy that typically leaks out of traditional ductwork. This makes mini splits incredibly energy-efficient, especially in our hot Central Texas climate.

Factors That Determine How Many Mini Split Heads Do I Need

When we visit a home in New Braunfels or San Marcos, we don't just count rooms. We look at several environmental factors that dictate how hard a system has to work.

• Square Footage: This is your baseline. A single indoor head typically covers between 300 and 600 square feet, depending on its capacity.
• Insulation Levels: If you live in a historic home with thin walls, you might need more heads or higher-BTU units to combat heat transfer.
• Window Orientation and Sunlight Exposure: A room with giant, south-facing windows in the middle of a Texas July is going to need a dedicated head, whereas a shaded north-facing room might be able to share air from an adjacent zone.
• Room Usage: A kitchen generates its own heat from appliances, while a home office with three monitors and a server will have a higher "heat load" than a guest bedroom.

For homeowners looking for a Mini Split AC System New Braunfels TX, these local factors are why a professional assessment is so vital.

Calculating BTUs: How many mini split heads do I need for large spaces?

BTU stands for British Thermal Unit, and it’s the measure of cooling and heating power. A common rule of thumb is 20 BTU per square foot. For example, a 500-square-foot room would roughly need a 10,000 BTU unit.

However, you have to adjust this for:

• Ceiling Height: If you have 12-foot vaulted ceilings, you should add about 10% to your BTU requirement for every two feet over the standard eight-foot height.
• Heat Gain: Rooms with lots of people or electronics need more power.
• Climate: In our neck of the woods, we often lean toward slightly higher capacities to handle 100-degree days without Mini Split AC Temperature Control Issues.

Layout and Airflow: How many mini split heads do I need for multiple rooms?

Airflow is like water; it takes the path of least resistance. It doesn't like to turn corners or squeeze through narrow doorways.

If you have an open floor plan where the living room, dining area, and kitchen all flow together, one high-capacity head can often handle the whole space. But if you have closed doors, the air stops there. Even if the living room is a cool 72 degrees, a bedroom with a closed door will stay sweltering.

This is why we often recommend a dedicated head for each regularly occupied room that is separated by a door. If you're planning a Mini Split AC System Canyon Lake TX, we'll look at your specific floor plan to see where air will naturally travel and where it will get trapped.

Single-Zone vs. Multi-Zone System Architecture

One of the biggest misconceptions is that every indoor head needs its own outdoor unit. That’s not the case! You can choose between single-zone and multi-zone setups.

With a multi-zone system, the outdoor condenser has a specific capacity. We can often "oversize" the indoor heads slightly (up to 130% of the outdoor capacity) because it's rare that every room in your house will need maximum cooling at the exact same moment. This flexibility helps prevent Mini Split AC Zone Control Problems by ensuring each room gets exactly what it needs.

Strategic Placement: Do You Need a Head in Every Room?

The short answer is: no, you don't need a head in every single room, like bathrooms, hallways, or walk-in closets. These smaller spaces usually stay comfortable just by sharing air with the larger adjacent rooms.

However, for bedroom privacy, most families prefer a dedicated head. This allows the person in the master bedroom to sleep at 68 degrees while the guest room stays at 74.

For open-concept living areas, we might place one powerful unit centrally to cover the kitchen and living room. If you’re worried about the look of a wall-mounted unit, there are slim-ducted mini split alternatives. These hide in the attic or crawlspace and use very short duct runs to vent into two or three nearby rooms, effectively reducing the number of visible "heads" you need.

If you are looking at a Mini Split AC in Garden Ridge TX, we can show you how to blend these units into your home's aesthetic while maintaining perfect comfort.

Why a Manual J Load Calculation is Essential in 2026

As of April 2026, the HVAC industry has moved toward even more precise standards. We no longer rely on "gut feelings" or simple square footage charts. The Manual J Load Calculation is the gold standard for sizing.

This calculation takes into account your home's specific orientation to the sun, the type of windows you have, your attic insulation R-value, and even local humidity patterns.

Why does this matter for your head count?

1. Avoiding Short-Cycling: If we put a head that is too powerful in a small room, it will turn on and off constantly. This wears out the equipment and fails to remove humidity, leaving the air feeling "clammy."
2. Dehumidification: Mini splits are excellent at removing moisture, but only if they run for long enough cycles.
3. Professional Accuracy: A pro assessment ensures you don't buy five heads when three strategically placed ones would do a better job.

For homeowners looking for a Mini Split AC in San Marcos TX, a Manual J calculation is the only way to guarantee your system will perform during a record-breaking Texas heatwave.

Frequently Asked Questions About Mini Split Heads

Can I add more indoor heads to my system later?

It depends on the outdoor unit you install initially. If you buy a multi-zone condenser that supports up to five heads but only install three today, you can easily add the other two later. However, if you start with a single-zone unit, you cannot add a second head to it; you would need a whole new system.

How many rooms can one outdoor condenser unit support?

Most residential multi-zone condensers, like those from Carrier or GREE, support between two and five indoor heads. Some specialized "Mini-VRF" systems can support up to eight or nine heads on a single outdoor unit, though these are typically for very large homes.

Can one high-BTU head effectively cool an entire open floor plan?

Yes! If there are no walls or doors blocking the path, a single 24,000 or 36,000 BTU head can comfortably condition a large living room, dining area, and kitchen combined. The key is ensuring the unit is placed where it can throw air across the longest dimension of the space.

Conclusion

Determining how many mini split heads do I need isn't just about counting bedrooms; it's about understanding how your family lives and how air moves through your home. Whether you need a single zone for a new addition or a five-head system for a whole-home retrofit, the goal is always the same: whisper-quiet comfort and lower energy bills.

At HomeFront Heating & Air, we bring veteran-owned integrity and 16 years of local expertise to every job. As the only Carrier Factory Authorized Dealer in New Braunfels, we have the specialized training to perform precise Manual J calculations and design the perfect ductless layout for your home.

Ready to find your perfect Mini Split configuration? We serve neighbors across Austin, Bulverde, Cibolo, Kyle, and the entire Central Texas region. Give us a call today, and let’s get your home comfortable!
