Hard Start Kits: When Your Aging AC Needs Help Turning On

The Heavy Toll of Late-Summer Heat on Your AC Compressor

If you find yourself searching for information on hard start kits: when your aging AC needs help turning on, that strange, heavy groaning noise your outside unit makes is a warning sign our team at HomeFront Heating and Air tells homeowners never to ignore. If you have an older unit, you might also notice the lights inside your house dimming for a split second when the system tries to start. These are classic symptoms of an aging compressor struggling against internal mechanical resistance. You are likely dealing with a system that is showing its age and struggling to keep up with the grueling demands of the season as we transition into the back-to-school months. Before you assume your system has completely failed, it is important to know that a struggling unit does not always mean immediate death. Sometimes, it just needs a targeted electrical boost. Exploring comprehensive HVAC services can help you determine the best path forward for your specific equipment.

The extreme, prolonged heat of Central Texas takes a massive toll on cooling equipment. In our years of servicing HVAC systems in places like New Braunfels, TX, we see firsthand how the intense summer sun literally bakes outdoor compressors day after day. Over time, this relentless heat breaks down the internal lubrication that keeps the compressor's moving parts gliding smoothly. As that lubrication degrades, the metal components begin to grind against one another, creating severe mechanical resistance. Your air conditioner's motor now has to work significantly harder just to complete its initial startup sequence.

This creates a primary decision point for homeowners: determining if a hard start kit is a viable, life-extending fix, or if the compressor is actually in the final stages of complete failure. Making this distinction requires a professional evaluation, but understanding the underlying mechanics can help you make an informed choice about your home's comfort.

The Impact of Continuous Strain

When a compressor fights against mechanical resistance, it draws an excessive amount of electrical current. This sudden surge is what causes the lights in your home to flicker or dim. If left unaddressed, this repeated electrical strain generates excess heat, which further degrades the remaining lubrication and accelerates the wear and tear on the motor windings. Intervening early can interrupt this destructive cycle.

Understanding Mechanical Resistance in Aging Cooling Systems

To understand why an air conditioner suddenly struggles to start, it helps to look at the root cause of the problem. Mechanical resistance is a natural part of the wear-and-tear process for aging HVAC equipment, but it can catch homeowners off guard when it finally causes a noticeable issue.

The Problem: Cumulative High-Cycling Fatigue

Air conditioners do not run at a constant speed; they cycle on and off throughout the day to maintain the temperature set on your thermostat. Every time the system cycles on, the compressor has to overcome inertia. By the time August late-summer wear sets in, your unit has already endured months of continuous high-cycling in triple-digit temperatures. This makes late summer the absolute peak time for mechanical fatigue. The sheer number of startup cycles takes a cumulative toll on the internal hardware.

The Cause: Lubrication Breakdown and Friction

Think of your air conditioner's compressor like a car engine that has not had an oil change in far too long. Inside the sealed compressor shell, refrigerant and special oils work together to keep the moving parts lubricated and cool. As the system ages and endures brutal summer heat, this oil can break down, become acidic, or migrate away from the moving parts. Without adequate lubrication, the internal pistons or scrolls face immense physical friction. The motor gets physically "stuck" and requires a massive surge of electrical power to break free and start turning.

The Solution: Professional Intervention

Overcoming this resistance requires more electrical torque than the system was originally designed to provide. This is where professional diagnostics come into play. A licensed technician can measure the electrical draw of your compressor and determine exactly how much resistance the motor is fighting. Scheduling professional air conditioning repair and service ensures that the root cause of the friction is accurately identified before the compressor suffers permanent, irreversible damage.

What is a Hard Start Kit? (The Electrical Boost)

A hard start kit is an electrical component containing a specialized capacitor and a potential relay that provides an extra, massive boost of power to an air conditioner's compressor for a fraction of a second during startup. This surge of energy helps the aging motor overcome mechanical resistance, allowing it to turn on quickly and smoothly.

How the Components Work Together

The two main parts of the kit work in perfect tandem. The start capacitor stores a high-capacity electrical charge. When the thermostat calls for cooling, this capacitor releases its stored energy directly into the compressor's start winding, delivering the extra torque needed to break through the physical friction. The moment the compressor reaches its normal running speed—usually within half a second—the potential relay instantly disconnects the start capacitor from the circuit. This prevents the motor from overheating due to excessive continuous current.

Hard Start Kits vs. Standard Run Capacitors

Most homeowners in New Braunfels, TX, are familiar with standard run capacitors, as they are one of the most frequently replaced parts during routine maintenance. However, a run capacitor and a hard start kit serve different purposes:

• Run Capacitors: These are built into the system from the factory. They provide a continuous, steady flow of electricity to keep the compressor and fan motors running smoothly after they have started.

• Hard Start Kits: These are aftermarket, professional-grade additions. They are designed exclusively for the startup phase and are immediately removed from the electrical circuit once the motor is running.

It is vital to note that installing these components involves handling high-voltage electricity and requires precise matching of microfarad ratings to your specific compressor. This is a professional-grade repair, not a DIY add-on.

Warning Signs Your Compressor Needs an Intervention

Recognizing the symptoms of mechanical resistance early can mean the difference between a simple electrical upgrade and a catastrophic compressor failure. Homeowners should be observant of how their system behaves during the hottest parts of the day.

Key Symptoms to Watch For

• Dimming or flickering lights: If the lights in your living room or kitchen dim noticeably the exact moment you hear the outside unit try to turn on, the compressor is pulling too much amperage because it is struggling to start.

• Loud clicking or buzzing sounds: A distinct humming, buzzing, or clicking noise from the outdoor condenser usually indicates that the electrical components are sending power, but the motor is physically locked up and cannot turn.

• Heavy groaning on startup: If the unit eventually starts but sounds like it is grinding or groaning heavily for the first few seconds, it is fighting severe internal friction.

• Short cycling behavior: If the system attempts to start, makes a loud noise, and then immediately shuts off without blowing cold air, the internal thermal overload switch has likely tripped to protect the motor from burning out.

We had a homeowner reach out to us on short notice late this past summer when their HVAC unit exhibited these exact symptoms and suddenly refused to start properly. Our technician showed up on time, checked all aspects of the unit to rule out a dead compressor, and got the system back up and running smoothly by addressing the heavy startup load. Catching these warning signs early through routine AC maintenance or prompt repair calls is the best way to prevent permanent damage during the brutal August late-summer wear.

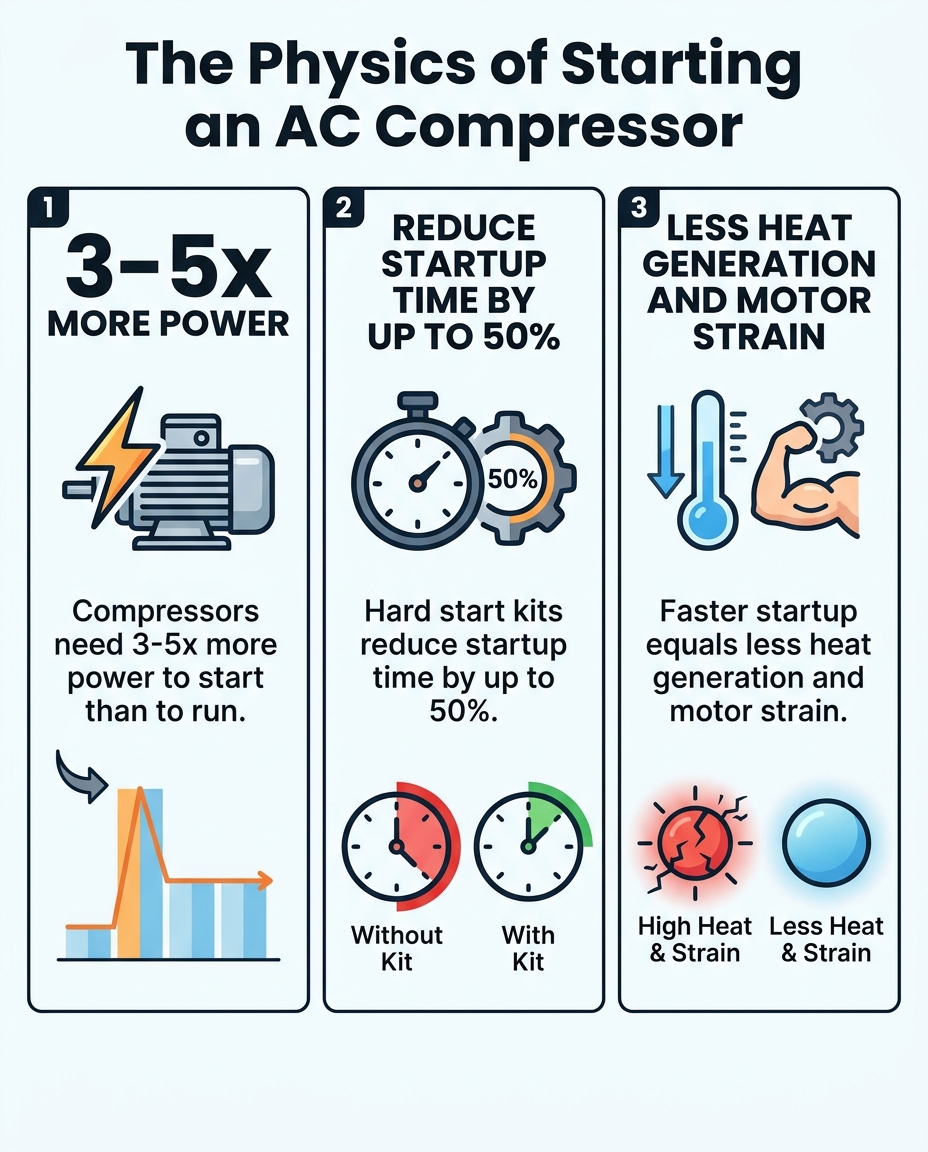

The Physics of Starting vs. Running: Why the Extra Power Matters

To fully appreciate why a hard start kit is so effective, it helps to look at the physics of electric motors. The amount of energy required to keep a heavy object moving is significantly less than the energy required to get it moving in the first place.

The Burden of Inrush Current

Air conditioning compressors are massive, heavy pieces of machinery. They require up to three to five times more electrical power to start than they do to run continuously. This massive spike in power is known as "inrush current." For a brand-new system, the factory-installed components can handle this inrush current easily. But for an aging system in New Braunfels, TX, that is already fighting degraded lubrication, the normal inrush current is no longer enough to get the heavy internal components moving.

Reducing Startup Time and Heat

When a compressor struggles to start, it remains in that high-amperage "starting" phase for too long. Electricity generates heat, and pulling massive amounts of current for an extended period causes the motor windings to overheat rapidly. Heat is the ultimate enemy of electrical components.

By delivering a concentrated blast of stored energy, a hard start kit can reduce a compressor's startup time by up to 50%. This rapid acceleration means the motor spends significantly less time pulling that dangerous inrush current. Reducing the startup time significantly lowers the heat generation and electrical strain on the motor. Ultimately, this electrical efficiency translates directly into an extended usable life for the unit, buying the homeowner valuable time before a full replacement becomes mandatory.

Honest Assessments: When to Install a Kit vs. Replace the Unit

While an electrical boost can work wonders, it is crucial to understand that a hard start kit is a life-extending measure, not a permanent cure for a dying compressor. If the internal mechanical wear is too severe, even the largest capacitor will not be able to force the motor to turn. Making a smart financial decision requires weighing the cost of the repair against the overall health of the system.

Evaluating Your Options

As a veteran-owned company, our team at HomeFront Heating and Air ensures you receive the same level of discipline, integrity, and accountability that military service demands. You can expect an honest, objective assessment of your equipment rather than a high-pressure sales pitch. Our trusted technicians will help you evaluate the age of the unit, the condition of the coils, and the likelihood of future breakdowns.

• System is 8-12 years old, well-maintained, but struggling slightly on hot afternoons. — Recommendation: Install Hard Start Kit — Reasoning: The compressor likely has plenty of life left but is facing normal August late-summer wear and mechanical resistance.

• System is 15+ years old, uses obsolete refrigerant, and requires frequent repairs. — Recommendation: Consider Replacement — Reasoning: A kit may start the unit today, but another expensive component will likely fail tomorrow. The investment is better spent on new equipment.

• Compressor is completely locked (grounded) and trips the breaker instantly. — Recommendation: Replace Compressor or Unit — Reasoning: The internal windings have fused or broken. No amount of electrical boost can fix a physically broken motor.

We recently guided a customer through a similar crossroads with their 17-year-old AC unit. After our thorough evaluation, it became clear that the internal wear was simply too advanced. Instead of wasting resources on temporary patches, they opted to replace the aging equipment with a new Carrier unit. Today, their home stays perfectly cold at 78 degrees with excellent efficiency. Understanding the balance between repair and replacement is critical, which is why deciding when to replace an aging AC requires looking at the total cost of ownership over time.

Planning for the Future of Your HVAC System

Even if a hard start kit successfully revives your compressor and gets you through the current cooling season, it is important to acknowledge that an aging unit in New Braunfels, TX, will eventually need replacement. The mechanical resistance will continue to slowly increase over time as the system logs more hours of operation.

Creating a Long-Term Comfort Strategy

The greatest benefit of a successful repair is that it gives you the gift of time. Instead of making a rushed, panicked decision in the middle of a heatwave with a broken AC, you now have the breathing room to research your options. Having a long-term comfort plan in place provides immense peace of mind. You can take the time to evaluate different efficiency ratings, compare equipment brands, and find a system that perfectly matches your home's square footage.

Exploring Financial Options Early

Sudden HVAC breakdowns are stressful primarily because they are unexpected expenses. By planning ahead, you can explore payment options early to alleviate that stress. Looking into HVAC financing options allows you to budget for a future upgrade on your terms. Additionally, this extra time allows you to research available energy programs, federal tax credits for high-efficiency heat pumps, or local utility incentives that can make a future upgrade much more manageable. Always consult with your utility provider or a tax professional to verify which generic incentive programs currently apply to your area.

Extending the Life of Your Cooling System

Dealing with an air conditioner that struggles to start can be incredibly frustrating, especially during the relentless heat of August late-summer wear. However, understanding how mechanical resistance affects your aging compressor empowers you to make smart decisions. A hard start kit provides a clear, non-technical path to extending the unit's lifespan by delivering the exact electrical boost needed to overcome internal friction.

By reducing startup time and lowering the heat generated during the critical inrush phase, this professional-grade component protects the motor from unnecessary strain. If you notice your lights dimming, hear loud buzzing from your outdoor unit, or suspect your system is working harder than it should, do not wait for a complete breakdown. Seek a professional diagnosis from a local expert to explore your repair options and keep your home comfortable for seasons to come.

Frequently Asked Questions

What are the signs my AC needs a hard start kit?

The most common signs include the lights in your home dimming or flickering exactly when the air conditioner tries to turn on. You may also hear a loud clicking, buzzing, or heavy groaning sound coming from the outdoor condenser unit. Additionally, if the system short-cycles—attempting to start and then immediately shutting off—it may be struggling to overcome mechanical resistance and tripping its internal safety overloads.

Will a hard start kit fix a bad compressor?

A hard start kit cannot fix a compressor that has completely failed, suffered broken internal parts, or has grounded electrical windings. It is designed to help a functioning but aging compressor overcome mechanical friction by providing extra starting torque. If the motor is physically locked up or burned out, the entire compressor or the whole outdoor unit will need to be replaced.

Does a hard start kit really work?

Yes, they are highly effective at extending the life of aging air conditioners. By delivering a massive, instantaneous boost of stored electrical energy, they reduce the time it takes for the compressor to start by up to 50%. This significantly lowers the heat and electrical strain on the motor, which protects the remaining internal components from further damage during startup.

How long will an AC last with a hard start kit?

There is no exact timeline, as it depends heavily on the overall condition of the system and how much mechanical wear has already occurred. In many cases, a hard start kit can buy a homeowner an additional one to three years of reliable cooling. It serves as a life-extending measure that gives you time to plan and budget for an eventual system replacement.

Can a hard start kit damage my AC?

If installed correctly by a licensed professional who matches the precise microfarad rating to your specific compressor, it will not damage your system; it actually protects it. However, if an incorrect size is installed, or if it is wired improperly by an amateur, it can send too much voltage to the motor or fail to disengage, which will quickly overheat and destroy the compressor.

Is a hard start kit the same as a run capacitor?

No, they serve two entirely different functions within the electrical circuit. A run capacitor provides a continuous, steady flow of electricity to keep the motor running smoothly after it has already started. A hard start kit is only active for a fraction of a second to provide a massive surge of power strictly for the startup phase, and then it immediately disconnects from the circuit.
