How Does a Ductless Mini Split Work and Why It Matters

Ductless Mini Split Systems Explained for Homeowners: A Complete Overview

Ductless mini split systems explained for homeowners is one of the most searched HVAC topics right now — and for good reason. More homeowners are discovering that these compact, highly efficient systems can solve comfort problems that traditional central air simply can't address.

Here's a quick breakdown of what a ductless mini split system is:

• What it is: A heating and cooling system made up of one outdoor compressor unit and one or more indoor air-handling units, connected by refrigerant lines through a small 3-inch wall hole — no ductwork needed
• How it works: It transfers heat between indoors and outdoors using a refrigerant cycle, cooling your home in summer and reversing the process to heat it in winter
• Key benefit: Without ducts, there's no energy lost through leaky ductwork — which can account for more than 30% of energy waste in a conventional system
• Best for: Older homes without ductwork, room additions, garages, home offices, or any space where a central system struggles to reach
• Efficiency: Mini splits are roughly 20–30% more efficient than ducted systems, and in heating mode they can be 2 to 4 times more efficient than a furnace or baseboard heater
• Lifespan: With proper maintenance, expect 10 to 15 years of reliable performance

Whether you're dealing with a hot spare bedroom, a garage that doubles as a workshop, or an older home with no duct system, a mini split offers a flexible and energy-saving solution that's worth understanding fully.

I'm Chris Stokes, a Carrier Factory Authorized Dealer and 16-year HVAC veteran, and I've helped countless homeowners find the right fit when it comes to ductless mini split systems explained for homeowners — from single-room setups to whole-home multi-zone configurations. In this guide, I'll walk you through everything you need to know to make a confident, informed decision.

When we talk about ductless mini split systems explained for homeowners, we are describing a "split" system because it separates the noisy business of compressing refrigerant from the quiet task of blowing air into your room. In a traditional central AC setup, you have one massive indoor unit (the furnace or air handler) hidden in a closet or attic, pushing air through a web of ducts. A mini split skips the middleman.

The Mini Split AC System New Braunfels, TX homeowners often choose consists of two primary parts: the outdoor condenser/compressor and the indoor air-handling unit. These are linked by a "conduit" that houses the power cable, refrigerant tubing, and a condensate drain line.

Ductless mini split systems explained for homeowners: The Core Components

To understand why these systems are so reliable, it helps to look under the hood. The indoor unit contains the evaporator coils and a quiet fan. As warm air from your room is drawn over these cold coils, the refrigerant absorbs the heat.

The outdoor unit is the "muscle" of the operation. It contains an inverter-driven compressor. Unlike older AC units that are either "all the way on" or "all the way off," an inverter compressor acts like cruise control. It slows down or speeds up to maintain a perfectly steady temperature, which saves a massive amount of energy.

Installation is remarkably non-invasive. Instead of tearing open your ceilings to run bulky metal ducts, we only need to drill a small 3-inch wall hole to pass the refrigerant lines through. This makes Mini Split Installation in Schertz, TX a quick process that preserves the structural integrity of your home.

Versatile Mounting Options for Every Room

One of the biggest perks of going ductless is the design flexibility. You aren't stuck with a giant box in the window or a vent in the floor that you have to arrange furniture around.

• Wall-Mounted Units: These are the most common. They are typically installed high on a wall, about six inches from the ceiling, to ensure the best air distribution.
• Ceiling Cassettes: These are great for a sleek look. They sit flush with the ceiling, with only the grille showing. They are very popular for Mini Split Replacement in San Marcos, TX projects where homeowners want a "hidden" look.
• Floor-Mounted Consoles: Ideal for rooms with low ceilings or slanted walls (like finished attics), these units sit low on the wall, similar to a radiator but much more stylish.

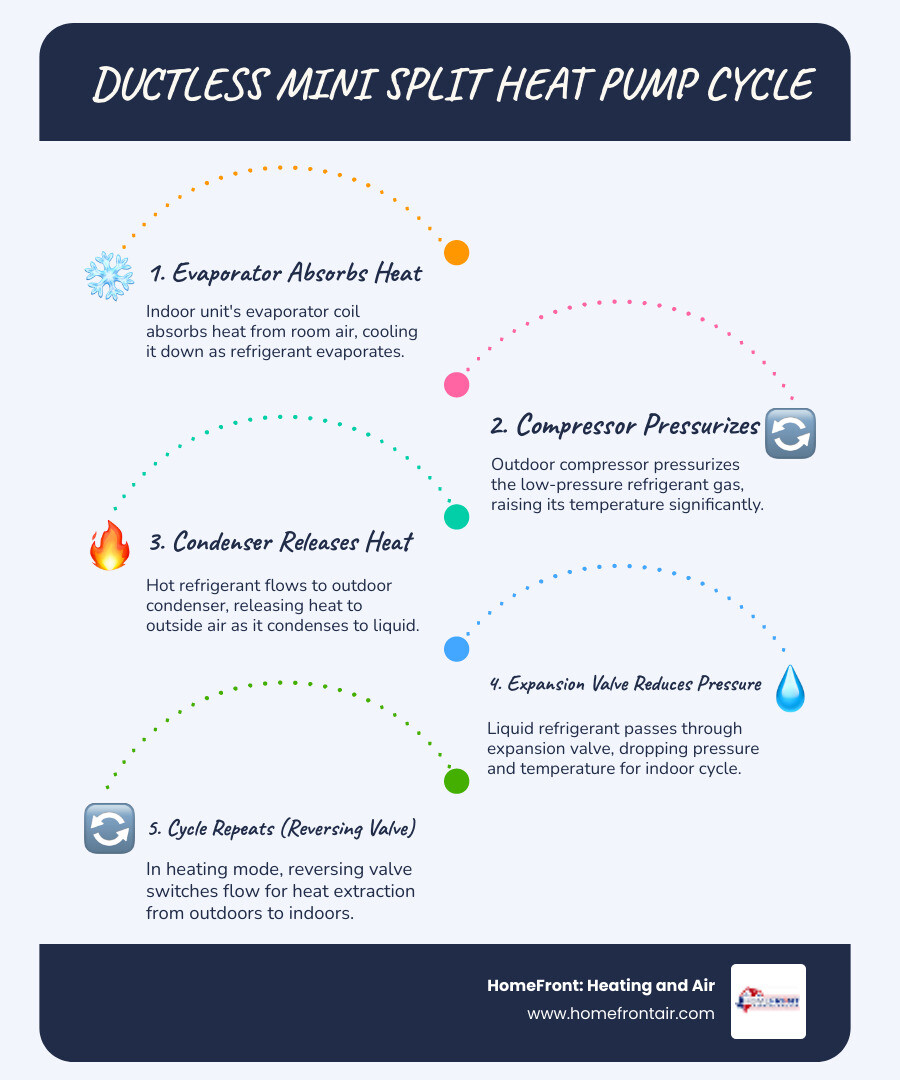

How the Refrigeration Cycle Powers Your Comfort

At its heart, a mini split is a heat pump. It doesn't actually "create" cold; it moves heat from one place to another. In the summer, it grabs the heat inside your house and dumps it outside.

What makes it a "heat pump" in the truest sense is the reversing valve. This clever component allows the system to switch directions. When the Texas winter hits, the system extracts heat from the outdoor air (yes, even when it feels cold outside, there is thermal energy available!) and pumps it into your home. This is much more efficient than electric baseboard heaters or old-fashioned furnaces.

Beyond temperature, these systems are excellent at dehumidification. In "Dry Mode," the unit can pull moisture out of the air without significantly lowering the temperature—a lifesaver during those humid Gulf Coast afternoons. If your system ever acts up, seeking Mini Split Repair in Universal City, TX ensures that this delicate refrigeration cycle is restored to factory specs.

Why Ductless Systems Are More Efficient

Efficiency isn't just a buzzword; it's a major reason for ductless mini split systems explained for homeowners to be a top priority. Traditional ducted systems lose a staggering amount of energy. In fact, ductwork in central forced air systems can account for more than 30% of energy consumption due to leaks and "conduction loss" (where the air gets warmer or cooler while traveling through the attic).

By delivering air directly into the room, mini splits achieve a 20-30% efficiency gain immediately. Some high-end Carrier systems we install boast SEER2 ratings that dwarf traditional central air units. This can lead to a 40% energy reduction on your monthly utility bills. When you consider Mini Split Service in Timberwood Park, TX, keeping these high-efficiency coils clean is the best way to protect that investment.

Single-Zone vs. Multi-Zone: Which is Right for Your New Braunfels Home?

Choosing the right configuration is the next step in our guide to ductless mini split systems explained for homeowners.

A Single-Zone System is one outdoor unit connected to one indoor unit. This is perfect for a "problem room," a new sunroom, or a detached garage.

A Multi-Zone System connects one powerful outdoor unit to multiple indoor units (some models can handle up to 8 separate zones!). This allows for independent temperature control. If you like your bedroom at 68 degrees but want the home office at 74, a multi-zone setup handles it easily.

Whether you need a single unit or a complex multi-room setup, Mini Split Installation in Helotes, TX should always be handled by professionals to ensure the line sets are properly vacuumed and sealed.

Ductless mini split systems explained for homeowners: Sizing and BTU Needs

Getting the size right is critical. If a unit is too small, it will run constantly and never get the room cool. If it's too large, it will "short cycle," turning on and off so fast that it never removes the humidity, leaving you feeling clammy.

BTU (British Thermal Units) measures cooling capacity. Here is a general rule of thumb for sizing:

• 12,000 BTU: Ideal for rooms between 400 to 650 square feet (like a large master suite).
• 18,000 BTU: Works for spaces 600 to 1,000 square feet (a small apartment or large living area).
• 24,000 BTU: Best for 800 to 1,300 square feet (open-concept floor plans).

We always recommend a professional load calculation for Mini Split AC Installation Cibolo, TX to account for ceiling height, window placement, and insulation levels.

Frequently Asked Questions about Ductless HVAC

One of the first things homeowners notice after installation is the silence. While a window unit clatters and a central AC system "whooshes" through the vents, a mini split is whisper-quiet. Indoor units typically operate between 20 and 49 decibels—that’s quieter than a library. Even the outdoor units are discreet, with many operating around 46 decibels, which is about the volume of a normal conversation.

With a typical lifespan of 10-15 years, these systems are a long-term solution for home comfort.

Can a mini split heat my home in extreme cold?

This is a common concern for ductless mini split systems explained for homeowners. In the past, heat pumps struggled when temperatures dropped below freezing. However, modern technology has changed the game.

Select Carrier mini split systems can provide heating at 80% capacity even when it is -22°F outside. For our service area, from New Braunfels to the Mini Split Repair Austin, TX corridor, these systems provide year-round reliability even during our occasional winter freezes. They are 2 to 4 times more efficient than traditional electric furnaces because they move heat rather than creating it through high-resistance coils.

Do I need a unit in every room?

Not necessarily. It depends on your "zoning strategy." If you have an open-concept living room and kitchen, one larger indoor unit can often cover the entire space. However, for a home with many small, partitioned rooms, you would want a unit in the areas you use most.

Many homeowners use mini splits for "supplemental" cooling. For example, if your central AC can’t keep the upstairs cool, a Mini Split AC in Lockhart, TX installation in the master bedroom allows you to sleep comfortably without cranking the main thermostat and wasting money cooling the rest of the house.

What maintenance is required for peak performance?

Mini splits are low-maintenance, but they aren't "no-maintenance." Because they don't have large central filters, each indoor unit has its own small filter that needs to be cleaned.

1. Clean Filters Monthly: Simply pop the front panel, slide out the filters, rinse them in the sink, let them dry, and put them back. This keeps airflow strong and air quality high.
2. Clear Outdoor Debris: Ensure no leaves, tall grass, or trash is blocking the outdoor unit’s airflow.
3. Professional Inspections: Once a year, have a technician check the refrigerant levels and clean the internal coils. This is a standard part of Mini Split Service in Selma, TX and prevents issues like mold growth or "dirty sock syndrome."

Conclusion

At HomeFront, we believe that understanding ductless mini split systems explained for homeowners is the first step toward a more comfortable, energy-efficient home. Whether you are retrofitting a historic home in San Marcos or adding a workspace to your garage in New Braunfels, these systems offer a level of control that traditional HVAC simply can't match.

As the only Carrier Factory Authorized Dealer in New Braunfels, our team is uniquely qualified to design and install the perfect system for your specific needs. We bring 16 years of local expertise to every job, ensuring that your installation is handled by certified technicians who understand the Texas climate.

Ready to experience the quiet, zoned comfort of a ductless system? From expert installation to long-term maintenance plans and flexible financing, we are here to help. Explore our mini-split services today and see why so many of your neighbors are making the switch to ductless.
