Diagnosing a Fan Blade Rubbing the Housing on Your Outdoor Condenser

Hearing a Loud Metal-on-Metal Scraping from Your AC?

What should you do when a sudden, terrifying racket erupts from your backyard? A loud scraping noise from an outdoor AC unit is one of the most alarming sounds a homeowner can hear. Diagnosing a fan blade rubbing the housing on your outdoor condenser is a critical first step in preventing catastrophic equipment failure. When you hear that continuous, harsh grinding, it almost always indicates that the fan blade has lost its precise alignment and is physically striking the metal shroud or wire guard. This is not a noise you can ignore or "wait out" to see if it improves.

When dealing with complex HVAC systems, mechanical clearances are measured in fractions of an inch. If you are facing this exact mechanical emergency and need professional air conditioning repair, our team is ready to step in. However, before a technician arrives, you face an immediate decision point: you must shut off the system to protect the motor, and you can perform a safe, disciplined visual inspection to understand what went wrong.

The outdoor condenser unit houses the compressor, the condenser coils, and the large fan assembly that exhausts heat pulled from your home. That fan is the lungs of your cooling system. When it starts violently rubbing against the metal housing, the friction generates intense heat, strips the protective coating off the blades, and puts immense strain on the electrical components. By understanding the mechanics behind this terrifying sound, you can take immediate action to protect your investment and communicate clearly with your technician.

Immediate Safety Protocol: Shut Off Power at the Breaker

A rubbing fan blade is an absolute mechanical emergency. Standard residential AC condenser fan motors spin at 800 to 1,100 RPMs (revolutions per minute). At those speeds, any clearance issue causes rapid, severe damage to the blades, the motor shaft, and potentially the delicate refrigerant coils nearby. Even during the peak of the Texas summer cooling season, it is far better to endure the heat briefly than to let a rubbing blade destroy the entire motor assembly.

Before you attempt any visual diagnostics, you must establish strict safety boundaries. Never reach your hands, tools, or any objects through the wire guard of an air conditioner while it is connected to power. Follow these exact steps to secure the equipment:

1. Turn off the thermostat indoors: Walk to your central thermostat and switch the system from "Cool" to "Off." This stops the low-voltage call for cooling, but it does not completely isolate the high-voltage power at the outdoor unit.

2. Locate the outdoor disconnect box: Find the small gray electrical box mounted on the exterior wall near your condenser unit. Open the lid and either pull the disconnect block out or flip the switch to the "Off" position.

3. Shut off the dedicated breaker: For absolute safety, go to your main electrical panel and locate the double-pole breaker labeled "AC" or "Condenser." Flip this breaker to the "Off" position.

4. Enforce a hands-off boundary: This guide is for safe visual inspection only. Do not attempt to remove the top grate, unscrew the housing, or bend the fan blade back into place by hand. DIY repairs on high-voltage, high-RPM components are incredibly dangerous and can void your manufacturer warranty.

By killing the power immediately, you stop the metal-on-metal destruction. A fan blade that has only scraped the housing for a few seconds might still be salvageable. A blade that has been grinding for an hour will almost certainly need to be replaced, and it may have burned out the motor in the process.

What Causes a Fan Blade Rubbing Housing Noise?

Condenser fans are engineered with incredibly tight tolerances. The fan blades are pitched at precise angles to maximize airflow efficiency, pulling air through the side fins and blowing it straight up through the top. The gap between the spinning blade tips and the circular metal shroud is intentionally narrow to prevent air from looping back down into the unit. When you hear AC fan blades making scraping noises, it means that critical alignment has been lost entirely.

Identifying the root cause of this misalignment dictates the necessary repair steps. There are three primary culprits that cause a fan blade to strike its housing, each requiring a different diagnostic approach.

Physical Blade Damage

Fan blades are typically made of lightweight aluminum or composite materials. While durable against wind and rain, they are highly susceptible to direct physical impacts. If a heavy tree branch falls through the top grate, or if large hail strikes the unit at a severe angle, the blade can warp or bend. Even a deflection of a quarter-inch is enough to cause the spinning blade to clip the side of the metal shroud on every single rotation.

Failing Motor Bearings (Dropped Shaft)

The fan motor sits vertically inside the unit, with the fan blade attached to a central steel shaft. This shaft is held perfectly centered and supported by internal motor bearings. Over time, as these bearings wear out, they lose their ability to hold the shaft tightly in place. Eventually, the bearing fails entirely, causing the shaft—and the heavy fan blade attached to it—to "drop" downward by an inch or more. When this happens, the bottom edges of the fan blades begin grinding against the lower wire guard or the internal housing structure.

External Housing Impact

Sometimes, the fan blade itself is perfectly fine, but the metal housing surrounding it has been compromised. If a lawnmower bumps hard into the side of the condenser, or if a vehicle backs into the unit, the outer metal chassis can dent inward. This pushes the circular shroud into the path of the spinning fan blade. In these cases, the repair involves reshaping or replacing the housing to restore the necessary mechanical clearance.

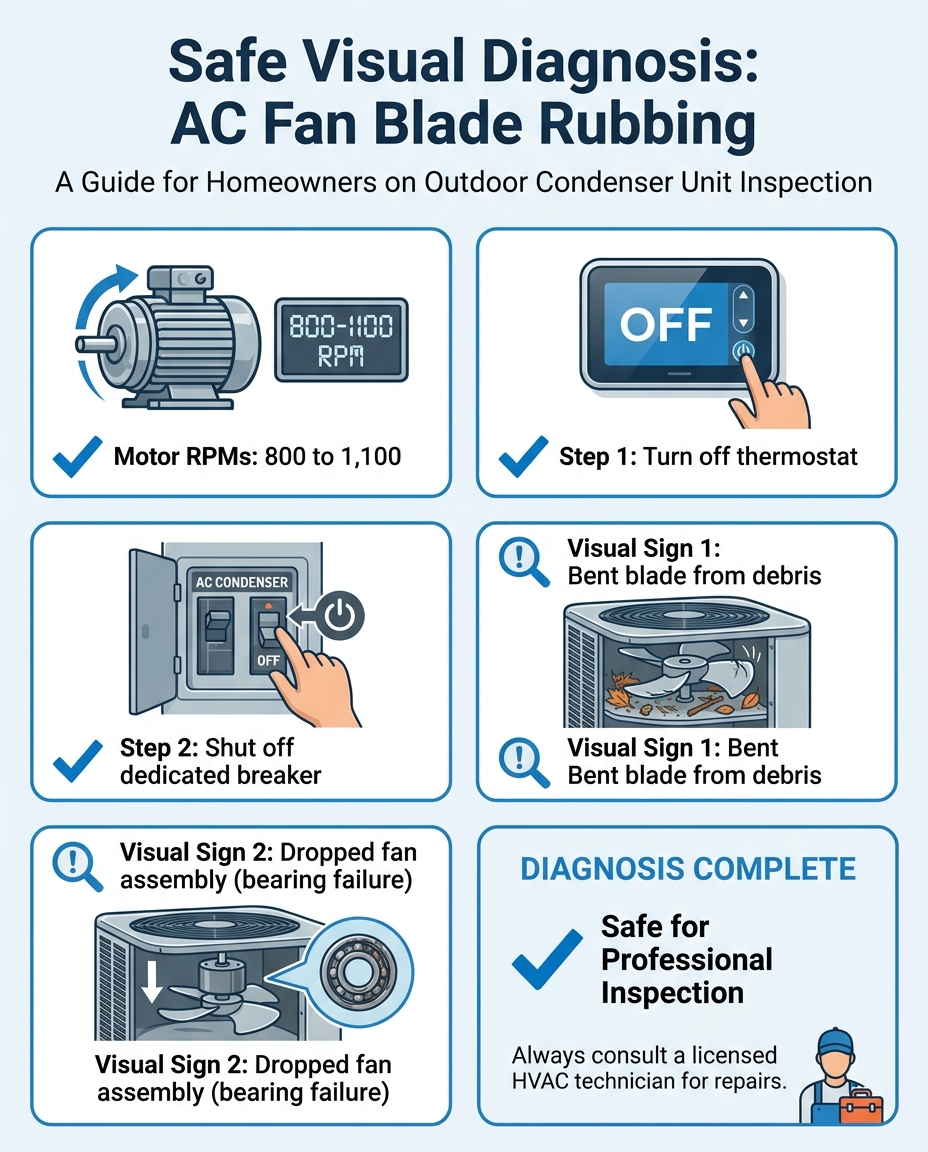

Safe Visual Inspection: Bent Blade vs. Dropped Motor Bearing

Once the power is completely shut off at the breaker, you can perform a safe, hands-off visual diagnostic process. The goal here is not to fix the issue, but to gather information. Identifying the exact root cause helps you avoid being pressured into unnecessary full-system replacements by less scrupulous contractors.

As a veteran-owned business, we believe in a disciplined diagnostic approach. We want to empower homeowners to understand the exact root cause visually so they feel confident and informed, ensuring they only get the repair they actually need. One homeowner called us during a winter cold snap with a similar mechanical issue on a heat pump condenser. By taking a methodical approach to the diagnostics, our technician identified the exact failing component and repaired the existing system without applying any pressure for an unnecessary upgrade.

To inspect your unit, grab a strong flashlight. Stand beside the condenser and shine the light straight down through the top metal grate. Look closely at the fan assembly without removing any screws or grates.

• Blade Alignment — Signs of a Bent Fan Blade: One specific blade looks twisted or sits at a different angle than the others. — Signs of a Dropped Motor Bearing: All blades are angled correctly, but the entire central hub sits noticeably lower.

• Visible Debris — Signs of a Bent Fan Blade: Sticks, large acorns, or debris are wedged inside the unit near the blades. — Signs of a Dropped Motor Bearing: The inside of the unit is mostly clean, with no obvious foreign objects.

• Scrape Marks — Signs of a Bent Fan Blade: Scuff marks are visible on the upper side walls of the metal shroud. — Signs of a Dropped Motor Bearing: Scuff marks or metal shavings are visible on the bottom wire guard below the motor.

• Prior Symptoms — Signs of a Bent Fan Blade: The noise started suddenly, often immediately after a severe storm or yard work. — Signs of a Dropped Motor Bearing: The scraping was preceded by weeks of high-pitched squealing or grinding noises.

The quick takeaway: If you see a physical dent in the blade or a branch stuck inside, you are likely dealing with physical damage. If the whole fan assembly looks like it has sunk downward toward the bottom of the unit, you are dealing with a failed motor bearing. Catching these issues early during a routine AC maintenance plan can often prevent the sudden, catastrophic failure that leads to metal-on-metal scraping.

How Extreme Heat Accelerates Motor Bearing Failure

Outdoor condenser units are subjected to immense thermal stress, and understanding this climate context helps explain why motor bearings fail and cause the fan assembly to drop. In our New Braunfels service area, summer temperatures frequently exceed 100 degrees, placing maximum thermal stress on outdoor condenser components.

During a typical July or August heatwave, your AC condenser may run for 12 to 16 hours a day just to keep the indoor temperature bearable. This constant, heavy-duty operation prevents the condenser fan motor from ever truly cooling down. Inside that motor, the steel shaft spins inside sealed bearings packed with specialized industrial lubricant.

Heat is the natural enemy of this lubricant. As the motor runs continuously in triple-digit ambient heat, the internal temperature of the motor skyrockets. Over time, this extreme thermal load causes the bearing grease to break down, thin out, and eventually evaporate or leak past the seals. Once the lubricant is gone, it is bare steel spinning against bare steel.

This creates a rapid cascade of mechanical failure:

• Increased friction: The unlubricated bearing generates even more heat, accelerating wear.

• Material degradation: The steel ball bearings begin to grind themselves into dust.

• Loss of support: The bearing housing wears away, creating "play" or looseness in the shaft.

• The drop: Gravity and downward airflow force the loose shaft downward, causing the fan blades to strike the lower housing.

This is why a scraping fan blade is rarely a standalone issue—it is often the final stage of a long-developing bearing failure accelerated by extreme local heat. Regular preventative checks by a qualified technician can often catch this bearing wear (usually identified by a slight wobble or a squealing sound) long before it results in a dropped shaft and a ruined fan blade.

Frequently Asked Questions About AC Condenser Fan Noises

Why is my AC fan blade hitting the side?

Usually caused by a bent fan blade, a failing motor bearing that has allowed the fan shaft to drop, or physical damage to the outer metal housing. When the precise alignment of the condenser fan is compromised, the tight clearances disappear, causing the spinning metal to strike the shroud. Identifying whether the issue is the blade itself, the motor supporting it, or the chassis surrounding it is the first step in diagnosis.

Can I run my AC if it's making a loud noise?

No. Running an AC with a metal-on-metal scraping noise will quickly destroy the fan motor, the blade, and potentially damage the condenser coils. The fan spins at roughly 1,000 RPMs; at that speed, even a slight rub generates immense friction and heat. Shutting the system off immediately at the breaker is the only way to prevent a minor repair from turning into a major system replacement.

What does a bad AC fan motor bearing sound like?

Before it completely fails and causes a scraping noise, a bad bearing often produces a loud squealing, grinding, or screeching sound. You might also notice a rhythmic ticking or a low, rumbling vibration coming from the outdoor unit. If you catch these auditory warning signs early, you can often replace the motor before the shaft drops and destroys the fan blade along with it.

How do you fix a fan blade rubbing on the housing?

This requires professional diagnosis to determine if the blade needs balancing/replacement, if the motor needs replacing, or if the housing must be repaired. It is not a safe DIY fix. Bending a fan blade back by hand is highly discouraged, as even a slightly unbalanced blade will vibrate violently and destroy the motor bearings within weeks. A licensed technician has the tools to measure clearances, safely discharge capacitors, and install perfectly balanced replacement parts.

Will a rubbing fan blade cause my compressor to overheat?

Yes. If the fan cannot spin at its proper RPM, it cannot remove heat from the condenser coils, which will quickly cause the compressor to overheat and shut down. The fan is responsible for exhausting the heat absorbed from inside your home. If friction slows the fan down, or if the motor burns out entirely, the compressor will continue trying to pump refrigerant until its internal thermal overload switch trips, potentially causing permanent compressor damage.

Get Disciplined Diagnostics for Your Condenser Fan

Completing a safe visual diagnosis gives you the knowledge you need before a technician even arrives in your driveway. By understanding whether you are looking at a bent blade from storm debris or a dropped bearing from relentless summer heat, you take control of the situation. However, safely restoring the critical clearances inside your condenser requires professional tools, exact replacement parts, and a deep understanding of high-voltage systems.

Whether it is a simple housing adjustment or a full motor replacement, you deserve honest answers. Schedule an inspection with a team that values honest, disciplined diagnostics over high-pressure replacements. We will locate the exact source of the friction, explain your options clearly, and restore your system so you can enjoy reliable cooling without the terrifying sound effects.
